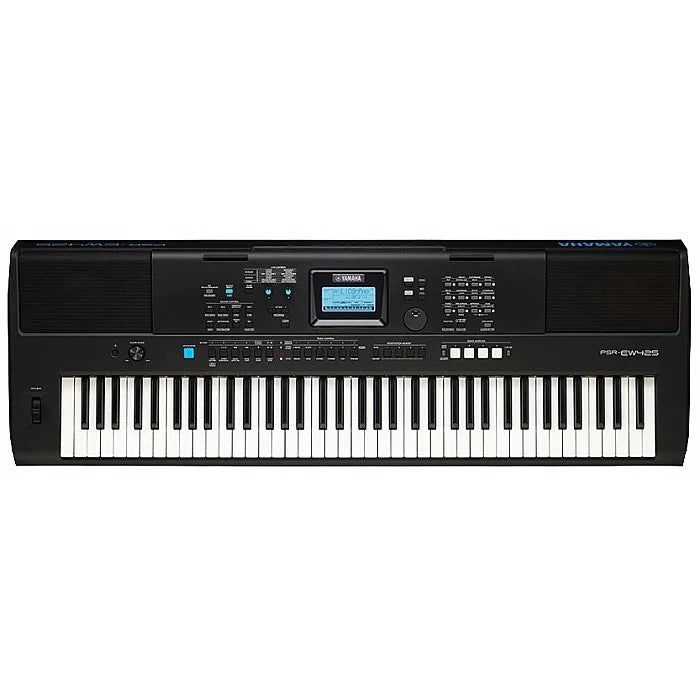

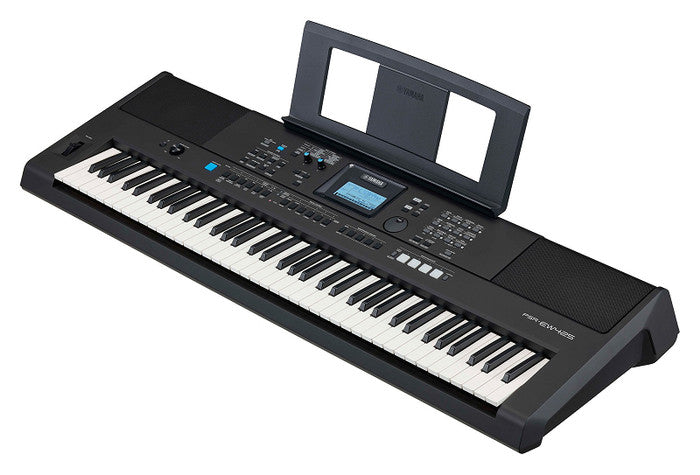

Yamaha PSR EW425 76 Keys Portable Keyboards

Yamaha PSR EW425 76 Keys Portable Keyboards

PSR-EW425 (New)
The PSR-EW400 series is an excellent gigging instrument, with a 76-key keyboard that more experienced players can make the most of. The latest PSR-EW425 features a newly developed tone generator that delivers stunning improvements in sound quality as well as high-quality effects such as delays, and as a premium organ sound sampled from the YC series of high-end stage keyboards.

Features

• 820 Voices and Super Articulation Lite Voices
• Premium organ sound
• 290 Styles
• 2 channels/41 types of DSP insertion effects
• Quick Sampling
• Groove Creator
• Live Control Knobs, Motion Effect functionality, pitch bend wheel
• Mega Boost
• Direct Category Access buttons
• USB Audio Recording/Interface
• Mic input and vocal effects
• Individual L/R outputs
• 12W + 12W powerful speakers


Sound like a pro!
The PSR-EW425 delivers the same pro-quality sound found in high-end models. They’re loaded with augmented effects and a wide range of Styles—from the latest hits to genres from around the world.

Express yourself
Yamaha revamped the control panel and LCD, phased out the numeric keypad, added Direct Category Access buttons. The optimized control panel makes it quick and easy to access Voices, Styles and functions so that you can focus your time on being creative. With dedicated buttons, Quick Sampling, and innovative Motion Effect functionality, you can intuitively express the sounds you're hearing in your head.

Connect and share
A variety of connectivity options provide all the support you need for practicing, playing, and performing. Plug in a microphone to try your hand at singing while playing, use the Rec'n'Share app to share your music with the world, and hook into PA systems to perform on stage.

PSR EW425 Specifications
Control Interface
Keyboard:
Number of keys: 76
Touch Response: Soft, Medium, Hard, Fixed
Other Controllers:
Pitch Bend Wheel: Yes
Knobs:
Language: English

Voices
Tone Generation Technology: AWM Stereo Sampling
Polyphony (max.): 64
Number of Voices: 820 (294 Panel Voices + 28 Drums/SFX Kits + 40 Arpeggio + 458 XGlite Voices)
Compatibility: GM, XGlite

Effects
Reverb: 12
Chorus: 5
Master EQ: 4
DSP: DSP1:41, DSP2:12
Accompaniment Styles
Number of Styles: 290
Fingering: Multi- Finger, Smart Chord
External Styles: 10
Other Features: One Touch Setting, Style File Format

Groove Creator
Number of Grooves: 35
Number of Sections: 5 (4 Sections + 1 musical Climax/Ending)

Songs (MIDI)
Number of Preset Songs: 30
Number of Songs: 10
Number of Tracks: 6 (5 Melody +1 Style/Groove Creator)
Data Capacity: Approx. 19,000 notes (when only “melody” tracks are recorded
Data Format – Playback: SMF Formats 0 & 1
Data Format – Recording: Original File Format (SMF 0 conversion function)

USB Audio Recorder
Recording Time: 80 min (approx. 0.9GB) per song
Playback/Recording: WAV( 44.1kHz 16 bit stereo)

Quick Sampling
Sampling Type: Oneshot, Loop
Samples (Preset/User): 4
Sampling Time: Approx 9.6sec
Sampling Sources: AUX IN, MIC INPUT, USB audio interface, WAV format files
Sampling Format: Original File Format (16 bit, stereo)
Sampling Rate: 44.1 kHz

Functions
Voices:
Dual: Yes
Split: Yes
Harmony: 26
Arpeggio: 152
Articulation: Yes

Registration Memory:
Number of Buttons: 9
Control: Freeze

Overall Controls:
Metronome: Yes
Tempo Range: 11 – 280
Transpose: -12 to 0, 0 to +12
Tuning: 427.0 – 440.0 – 453.0 Hz (approx. 0.2Hz increments)
Octave Button: Yes
Scale Type: 5 types

Miscellaneous:
PIANO Button: Yes
Demo: Yes
Melody Suppressor: Yes
Crossfade: Yes
USB audio interface: 44.1 kHz, 16 bit stereo
Motion Effect: 57
Mega Boost: 2 steps (approx. +3dB, and +6db)

Storage and Connectivity
Storage
Internal Memory: Approx. 1.72 MB
External Drives: USB Flash Drives
Connectivity:
DC In: 16V
Headphones: Standard stereo phone jack
Microphone: Yes
Sustain Pedal: Yes
AUX IN: Yes (Stereo mini jack)
OUTPUT: Standard stereo phone jacks: L/L+R/R
USB TO DEVICE: Yes
USB TO HOST: Yes

Sound System:
Amplifiers: 12W + 12W
Speakers: 12cm x 2

Power Supply
AC Adaptor:PA-300C (Output : DC 16V, 2.4A)
Batteries: Six ''D'' size alkaline (LR20), manganese (R20) or six “D” size Ni-MH rechargeable batteries (HR20)
Power Consumption: 11 W (When using PA-300C AC adaptor)
Auto Power Off: Yes

Size & Weight

• Dimensions (W x D x H): 1200mm x 404mm x 136mm
• Weight: 8.3kg
